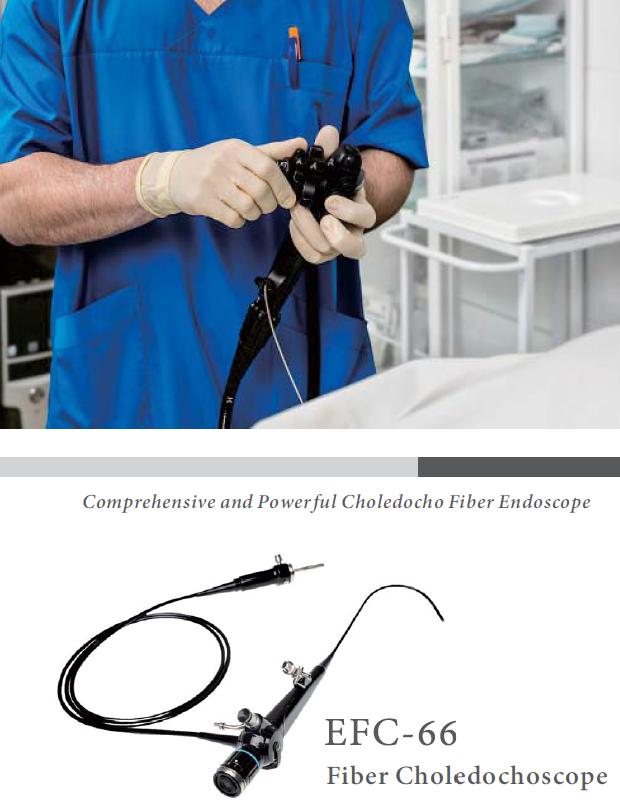

EFC-66
Fiber Choledochoscope
- Large field of view, clear and bright image.
- Large working channel with a 2.2 mm inner diameter.
- Lightweight, good insertion performance, waterproof design.
- Dual working channels scope HT66 makes irrigation, biopsy and other therapeutic performance excellent
- 40 x eyepiece, imported high-definition light guide and image guide.
- Suitable for all kinds of video systems with flexible or rigid scope lens adapters.
|
Item/Model |
EFC-66 Routine diagnosis |
EFD-66 Dual channel |
|
Field of View |
110' Forward viewing |
110 Forward viewing |
|
Depth of V ew Field |
3mm~50mm Fixed Focus |
3mm~50mm Fixed Focus |
|
Range of Tip Bending |
Up 160* . Down 130' |
Up 160 Down 130' |
|
Outer Diameter of Distal End |
0 4 .9mm |
0 5.9mm |
|
Outer Diameter of Insertion Tube |
0 5mm |
0 6.0mm |
|
Inner Diameter of Instrument |
0 2.2mm |
0 2.6mm |
|
Inner Diameter of Suction |
0 1.2mm |
|
|
Working Length |
380mm |
380mm |
|
Waterproof |
- |
- |
Standard Configurations:
Fiber Choledochoscope main unit*1;
Ventilation cover* 1;
Water three channels'!;
Hand-pressed endoscopic leak detector*1;
Biopsy forceps*!;
Stone basket* 1;
Attract button* 1;
Pipe cleaning brush*1;
Product Quality Assurance'1;
Technical lnstructions*1;
Len Mirror box*1;
User ManuaM;
Carton*1
