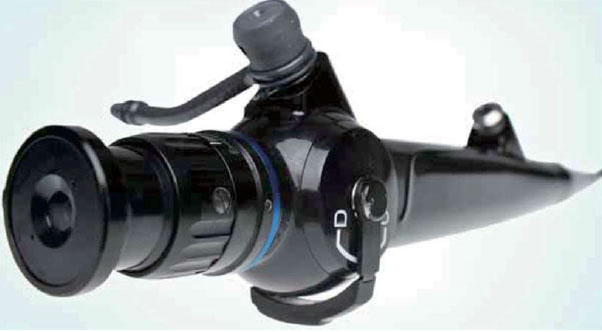

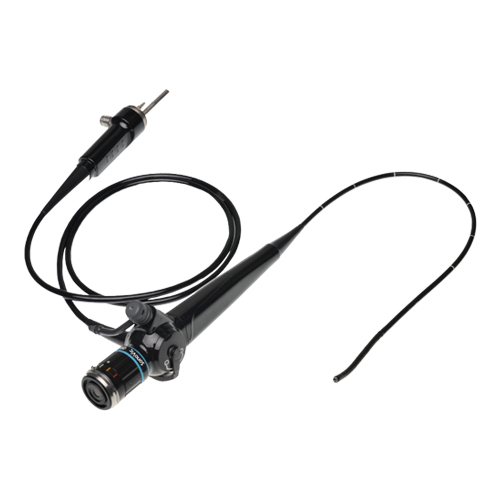

ET-6600
Fiber Rhino-Laryngoscope
- The bright image facilitates the diagnosis.
- Large working channel with a 2.2 mm inner diameter.
- Lightweight, high insertion performance, waterproof design.
- Combined with the VScope endoscopy workstation and video system, a set of very advanced digital endoscope image observation, processing, recording system can be easily formed.
- The optical image can be conveniently transformed into video image, not only greatly facilitating operation, but also providing unprecedented convenience for teaching and training application.
- 40 x eyepiece, imported high-definition light guide and image guide.
- Suitable for all kinds of video systems with flexible or rigid scope lens adapters.
|
Item/Model |
ET6600 Routine diagnosis |
EP6600 |
|
Field of View |
85' Forward viewing |
85* Forward viewing |
|
Depth of View Field |
3mm-50mm |
3mm-50mm |
|
Range of Tip Bending |
Up 130\ |
Up 130'. Down 130' |
|
Outer Diameter of Distal End |
Φ 4.9mm |
Φ 3.5mm |
|
Outer Diameter of Insertion |
Φ 5mm |
Φ 3.6mm |
|
Inner Diameter of Instrument |
Φ 2.2mm |
Φ 1.2mm |
|
Working Length |
365mm |
300mm |
|
Waterproof |
• |
• |
Standard Configurations:
Fiber Rhino laryngoscope* 1
Plug valve cap*5
Vent cover* 1
Hand pressure endoscope leak detector*1
Biopsy Forceps*2
Attract button*1
Pipe cleaning brush*1
Biopsy mouth brush'1
Mouth pad*2
Product QualityAssurance*1
Technical Instruction*1
Mirror box*1
Carton*1
Carton lining* 1
