• Working frequency: 512KHz;
• High frequency drain current≤150mA
• Output power: 50W(100Ω), 120W(500Ω), 200W(100Ω), 250W(500Ω), 300W(500Ω)
• Interval loading and continuous operating;
• Temporary loading rate: 10S/30S

• GS-420X Monopolar/hi polar Electrosurgical Generator.
• GS-420X Electrosurgical Generator is widely used for surgical operations.
• Such as general, cardiothoracic, urology, osteopathic, orthopedic and endoscopic surgeries.
• It is the type of closed-loop amplitude adjustment electrosurgical generator.

Main Technical Parameter:

1.Type of the apparatus: Model CF, Class I, A nti-defibrillation common equipment.

2.Working frequency: 512Khz

3.High frequency drain current £ 150mA

4.Outlet power:

• Pure Cut-300W(5000)
• Blend l-250W(500n)
• Blend 2-200W(500fl)
• B!end3-120W(500n)
• Monopolarcoag-120 W( 500ft)
• Bipolarcoag-50 W(500ft)

5.Working mode: interval loading and continuous operating, temporary loading rate: 10s/30s;

6.Power supply: single-phase AC110~220V,50Hz,max. current S3.2A;

7.Boundary dimension: 450*355*175mm

8.Host machine net weight: 9Kg; footswitch weight 19.5Kg;

9.Operation conditions: ambient temperature 5°C-40°C , Humidity £80% RH

Standard Configurations:

1. High-frequency electric knife host *1
2. Power cord* 1

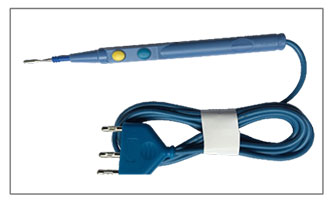

3. Hand-controlled knife (single-usc)*5

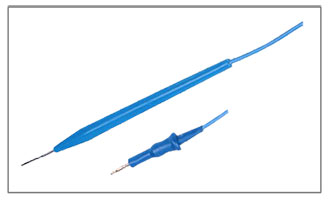

4. Foot control knife (disp<»sable) *2

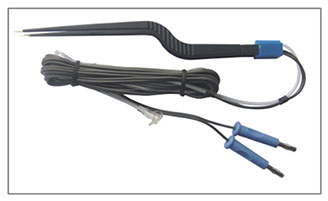

5. Bipolar electrocoagulation* 1

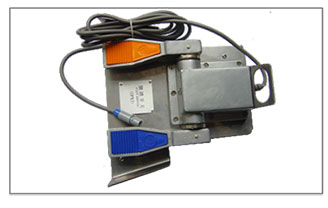

6. Waterproof double foot switch *1

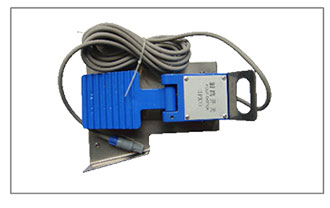

7. Waterproof single foot switch* 1

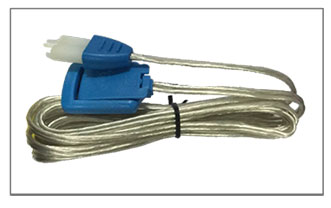

8. Negative pole connection*2

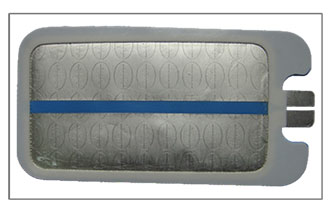

9. Abandoned conductive adhesive pole * 20 pieces

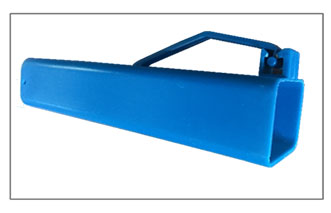

10. Autoclavalile sterilization box* 1

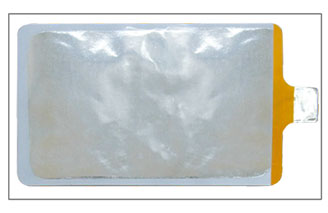

11. With disposable conductive adhesive pole*5
12. Installation and adjust instruction*l
13. Instruction Manual*!
